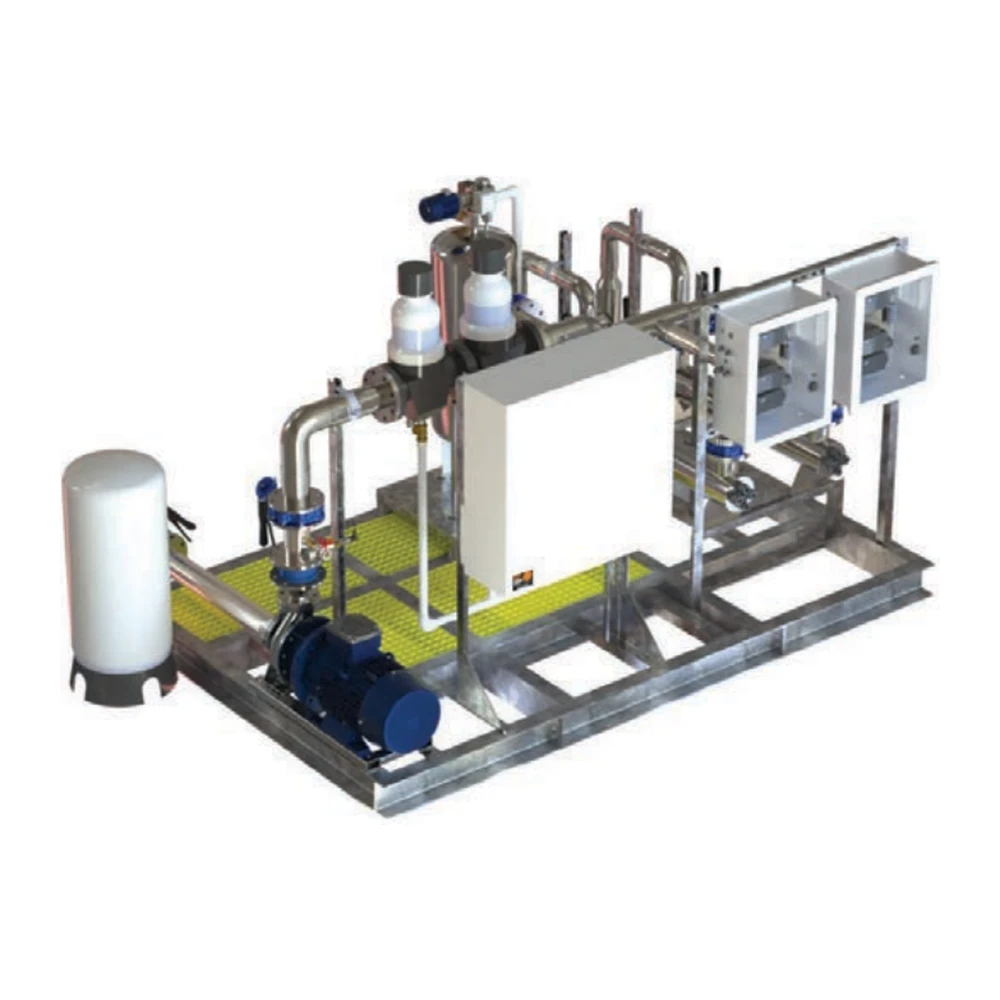

BASE:

• Common galvanised base plate and controller stand.
• Baseplate lifting point designed to meet
AS4100:1998 and AS1170.1:2002.

MANIFOLD:

• Stainless steel or PVC suction and discharge manifolds.
• Pump isolation and non return valves.
• 20mm test and drain valve.
• Stainless steel liquid filled pressure gauge.
• Pressure accumulator tank.
• Pressure Sensing Transducer (VSD).
• Flow control valves.

PUMPS:

• Single stage end suction pump or vertical multistage pump with
standard IEC motors and M.I.P (Maintenance in Place) capabilities.
• Cartridge mechanical shaft seal.
• Vibration isolation rubber mounts.
• AS4020:2018 potable water compliant.
CONTROLLER:
• Manufactured in accordance with the relevant standards:
AS3000:2007, AS1939:1990 and AS3439.1:2002.
• Constant Pressure VSD’s (Variable Speed Drives)
including capability for ultra-low harmonics ULH.
• High level interface for system monitoring and data logging.
• BACnet control (if required).

FILTRATION:

Watermark Automatic Backwash Filters with BMS comprising of:
• 100um automatic backwash filter – Judo.
• 50/30um automatic backwash filter – Judo.
• 5/6um automatic self-cleaning fine filtration.
• Ultraviolet Disinfection – a range of highly customisable
Watermark-certified UV disinfection systems, designed
for long life with up to 12,000 hours lamp life &
low maintenance with self-wiping capability.
• Custom configurations available to suit site requirements

Product Detail

• Vertical or Horizontal Multistage Pumps.
• Reliable and proved control logic.
• Variable Speed Drive Controller with LED Screen.
• Fabricated Stainless Steel Pipework and Valves.
• Pressure Tanks.
• Common Steel Base for easy transport and installation.
