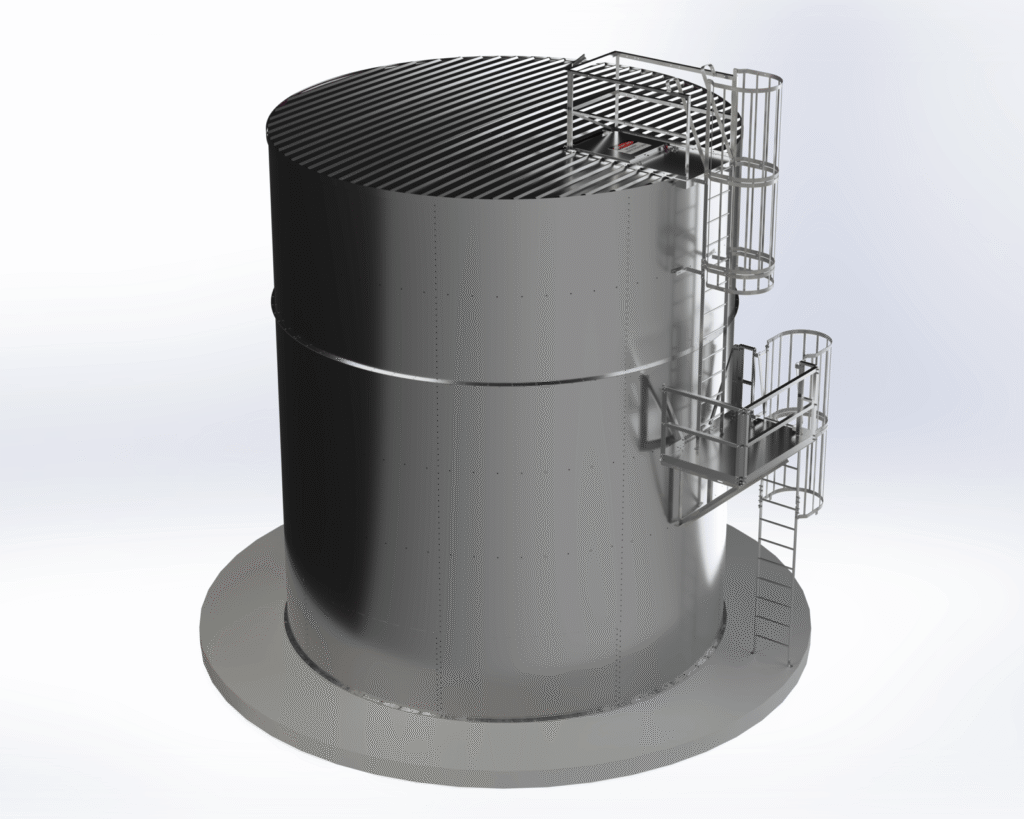

CASCADE round tanks come in a wide range of diameters and heights, starting from 2.99m diameter, so each tank can be matched to the site and the volume it needs to hold. Larger volumes are supplied as multiple tanks.
Tanks are manufactured to Australian Standards including AS 3500.1, with potable-compliant nozzles, roofs designed to AS/NZS 1170 and ladders to AS 1657. Each has a 25-year design life and a 10-year warranty as standard, with extended warranties available.
Product details
- Bolted galvanised or stainless steel panels, minimum 2mm thick, with GR450 and LDX 2102 stainless steel for complex and large storage
- Potable-grade PVC liner membrane as standard
- Galvanised or stainless steel roofing with anti-vermin protection, on a galvanised roof structure with zincalume sheeting as standard
- 750 x 750mm inspection access in the roof and 600 x 600mm manhole at low level
- External galvanised or stainless steel ladder to AS 1657, with lockable guard
- Internal galvanised steel ladder reaching 2.0m below high water level, adjusted for tanks under 2.35m high
- 2 x 25mm ball floats
- Tank level indicator, plus safety, capacity and description signage
- Stainless steel inlet, overflow, drain and outlet connections, with anti-vortex plate as standard
- Potable-compliant nozzles, fully isolated and protected on galvanised tanks
- Suction outlets can be fitted with anti-vortex and base plates to stop the liner being drawn into the outlet and damaging the liner or pump
Options
- Digital tank level indicator
- Quick fill valves
- Colorbond powder coated finishes for panels and roofing
- Roof walkways, stairs and other modular access
- REG126 and third-party engineering
- 304 or 316 stainless steel tank finish
