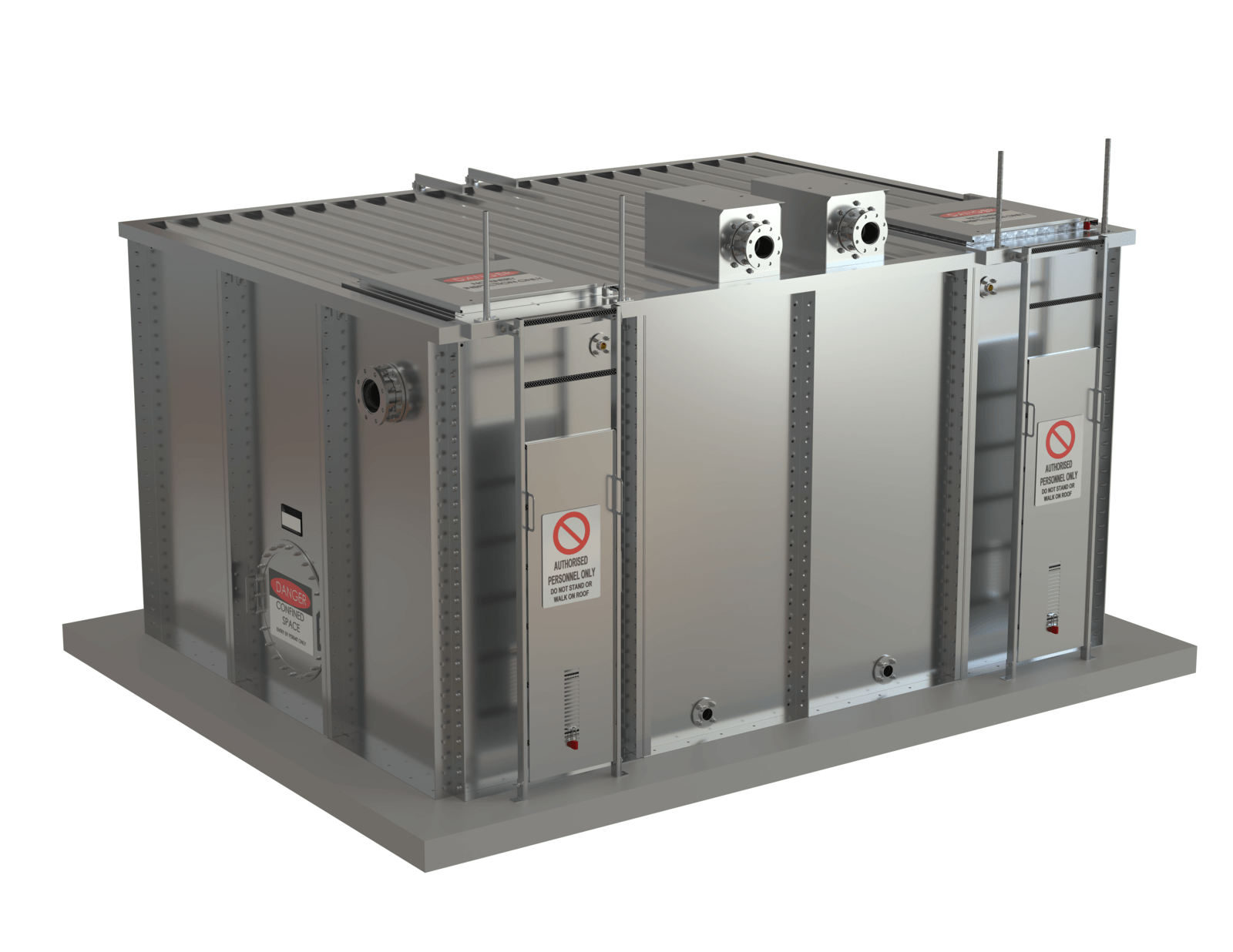

CASCADE rectangular tanks store potable water where space is tight. Length and width are built to suit the site, with standard heights up to 5.2m, and internal walls can split one tank into separate compartments. Larger volumes are supplied as multiple tanks.
Each tank is manufactured to Australian Standards including AS 3500.1, with roofs designed to AS/NZS 1170 and ladders to AS 1657. Tanks have a 25-year design life and a 10-year warranty as standard, with extended warranties available.
Product details
- Bolted galvanised or stainless steel panels, minimum 3mm thick, with GR450 and LDX 2102 stainless steel for complex and large storage
- Potable-grade PVC liner membrane as standard
- Galvanised roof structure with zincalume sheeting and anti-vermin protection, with stainless steel roofs available
- 750 x 750mm inspection access in the roof and 600 x 600mm manhole at low level
- External galvanised or stainless steel ladder to AS 1657, with lockable guard
- Tank level indicator, plus safety, capacity and description signage
- Stainless steel inlet, overflow, drain and outlet connections, with anti-vortex plate as standard
- Stainless steel nozzles fully isolated and protected on galvanised tanks
- Suction outlets can be fitted with anti-vortex and base plates to stop the liner being drawn into the outlet and damaging the liner or pump
Options
- Digital tank level indicator
- Quick fill valves
- Colorbond powder coated finishes for panels and roofing
- Roof walkways, stairs and other modular access
- REG126 and third-party engineering
- 304 or 316 stainless steel tank finish
- Internal divers ladder
