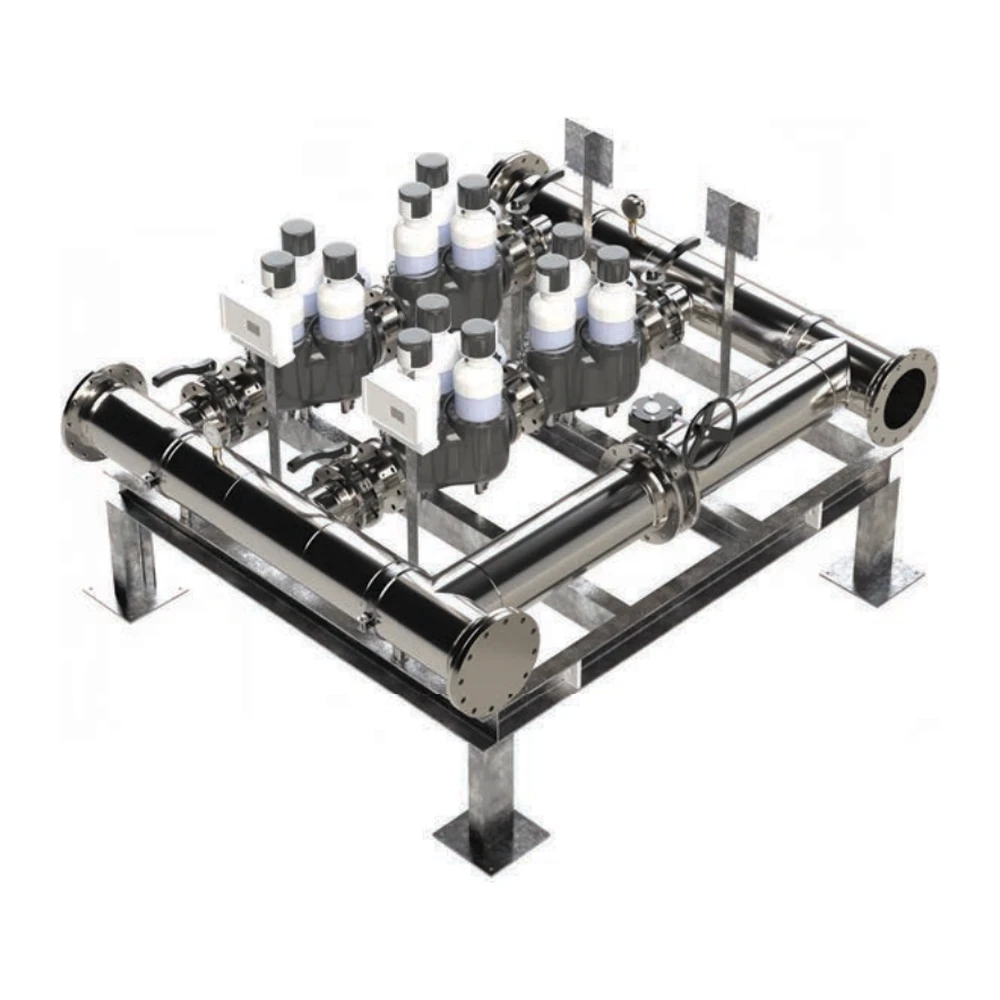

Automatic Screen Filtration Systems
Our HYDRA™ Automatic Screen Filtration System is engineered to safeguard mission-critical cooling infrastructure by delivering clean, reliable domestic water to industrial Water Storage Tanks. Designed around high-performance automatic backwash filters, the system provides continuous filtration without interrupting
downstream flow; ensuring stable water quality for chillers, heat exchangers and other essential cooling equipment.
With single or dual-stage filtration, manifold complete with bypass, and fully automated differential-pressure-triggered backwashing, the system maintains optimal performance even under variable
authority water conditions. Each filter operates independently, with built-in bypassing and dedicated drain connections to support seamless maintenance and long service life.
Engineered for dependability, automation, and compliance, this filtration system provides confidence that your cooling water supply remains clean, stable, and ready to support continuous uptime.
Features
BASE
• Common galvanised base plate and controller stand.
MANIFOLD
• Stainless steel suction and discharge manifolds.
• Manual bypass & isolation.
• 20mm test and drain valve.
• Stainless steel liquid filled pressure gauges
on suction & discharge manifolds.
FILTERS
• Automatic backwash via differential pressure and timer control.
• Efficient screen cleaning ratio of 1:1
using point rotation principle.
• No interruption to water flow during screen cleaning.
• AS 4020:2018 potable water compliant.
• Stainless steel screen that is Silver coated
to inhibit bacterial growth.
CONTROLS
• BMS connections for operation, fault,
and backwash status available.
• Manufactured in accordance with the relevant standards:
AS3000:2007, A51939:1990 and AS3439.1:2002.
INCLUSIONS
• Delivery to site – optional crane truck.
• Factory Acceptance Testing (F.A.T) at our state-of-the-art facility.
• Onsite commissioning.
• 24/7 technical support.
